Single Phase Pad Mounted Transformer

Single Phase Pad Mounted Transformer

Farady Electric’s single phase pad mounted distribution transformers provide a reliable  and affordable solution for clients who need to reduce their overall operating costs.

http://www.farady-electric.com/single-phase-pad-mounted-transformer/

Farady Automatic step voltage regulator

There are mainly three types of Automatic step voltage regulator. Servo stabilizer, Relay type voltage stablizer & now newly introduce technology of static voltage stabilizer. To understand working of servo stabilizer, we need to understand different components of servo stabilizer and its functions. Servo motor controlled Automatic voltage stabilizer consists of following components .
1. Buck/Boost Transformer: Buck/Boost transformer connected between mains input and out of stablizer of load terminals. One terminal of primary of buck boost transformer permanently connected to fixed tapping of autotransformer while another end connect to motor shaft.
2. Auto transformer: It has toroidal shape and auto transformer connected between neutral point and phase of input power supply.

The circuit of a voltage stabilizer

The circuit of a farady step voltage stabilizer basically consists of a voltage sensor. It is configured to detect the rise or fall of the ac power transformer voltage to dangerous levels. As soon it senses a risky input voltage, it immediately energizes the relays connected to it. These relays in turn swaps and switches the appropriate winding terminals of the auto transformer to correct and stabilize the output voltage. Thus the appliance which is connected to the output of the voltage stabilizer circuit always receives a safe, tolerable voltage and is able to function reliably, irrespective of the fluctuating input voltages.

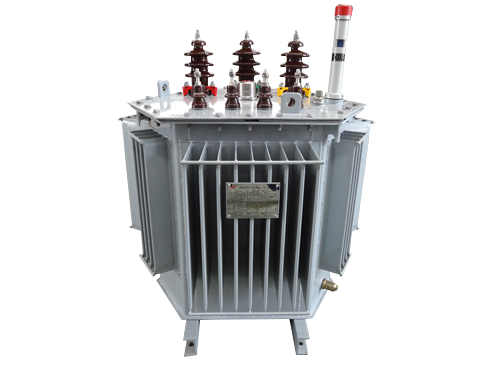

Wound Core Distribution Transformer

Wound Core Distribution Transformer

FARADY S11-M.RL, S13-M.RL series of three-dimensional triangular wound core transformer breaking the traditional planar structure, use symmetrical three-phase three-dimensional structure, the product is completely symmetrical three-phase core magnetic circuit reluctance greatly reduced, excitation current and significantly reduce the unload loss,which is a use of traditional materials, but runs quieter, more compact energy-efficient transformers. Its energy saving, environmental protection material on the outstanding performance of the province, and in full compliance with the energy policy.

http://www.farady-electric.com/wound-core-distribution-transformer/



Onload Tap Changer Distribution Transformer

Onload Tap Changer Distribution Transformer

The performance of Farady SZ-M series SZ series 10KV and 35KV load ratio voltage transformer conform to the standard of GB 1094 and IEC 60076 ,the products are widely used in power transmission and distribution of indusrtrial and agricultural power networks ,because of the unstably of power supply.

http://www.farady-electric.com/onload-tap-changer-distribution-transformer/
